Ledex Premium® Hi-Rib 40 PU Metal Roofing

Ledex Premium® Hi-Rib 40 PU Metal Roofing

Descriptions

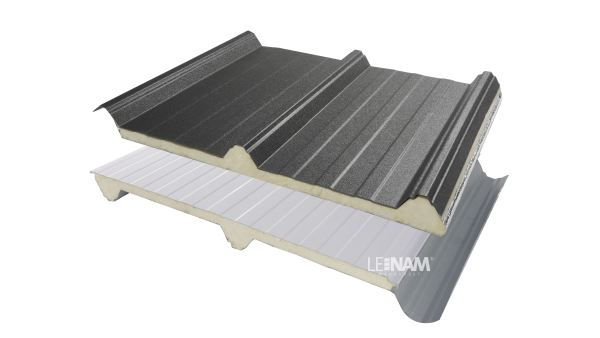

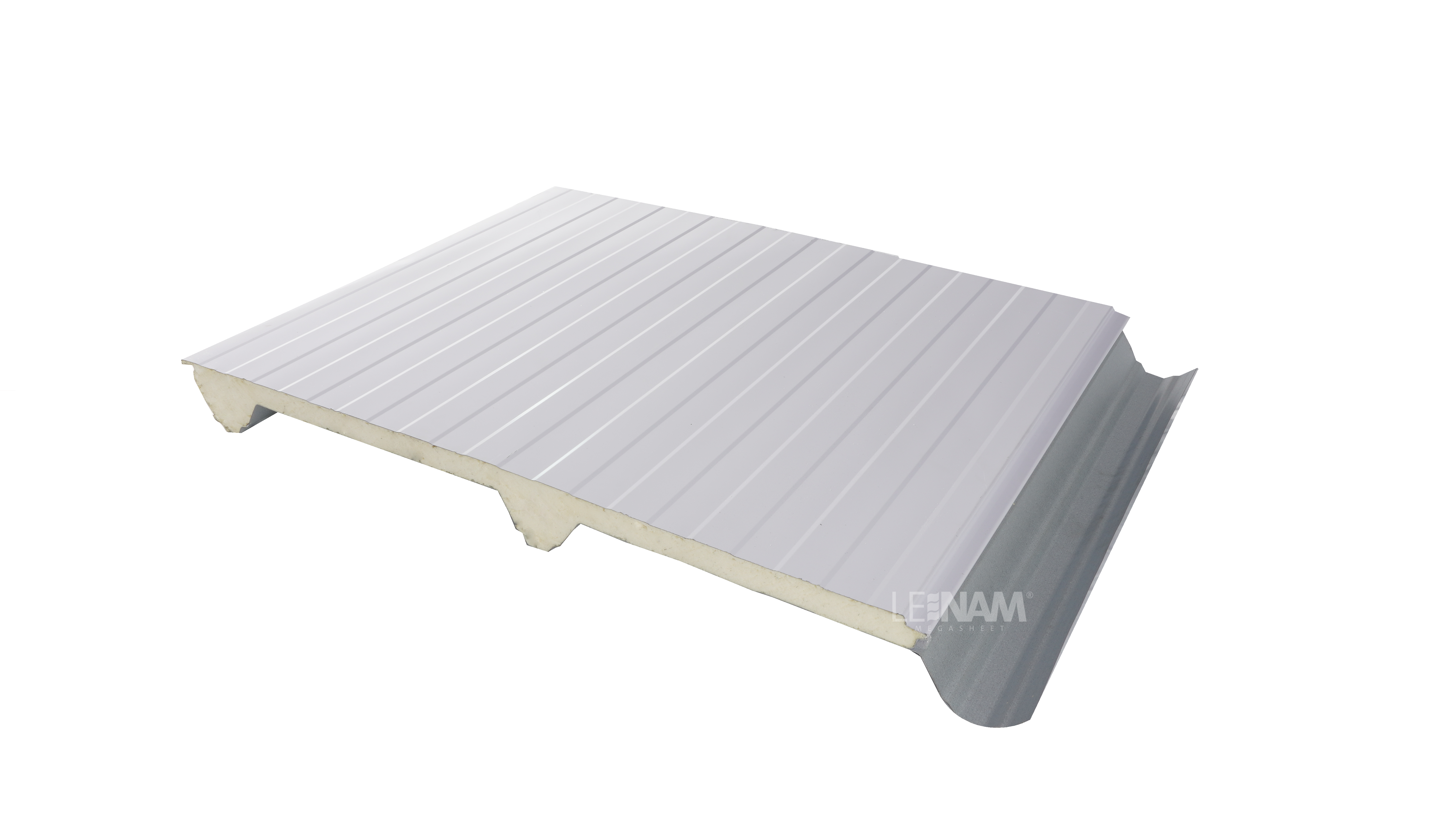

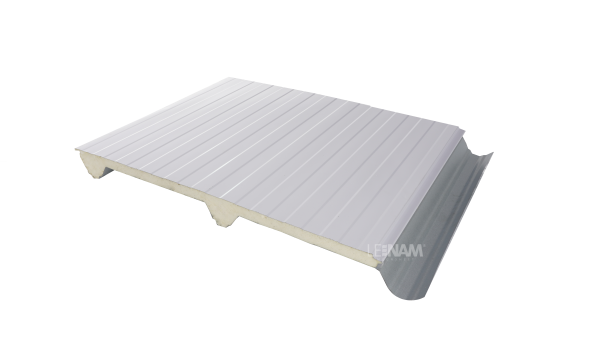

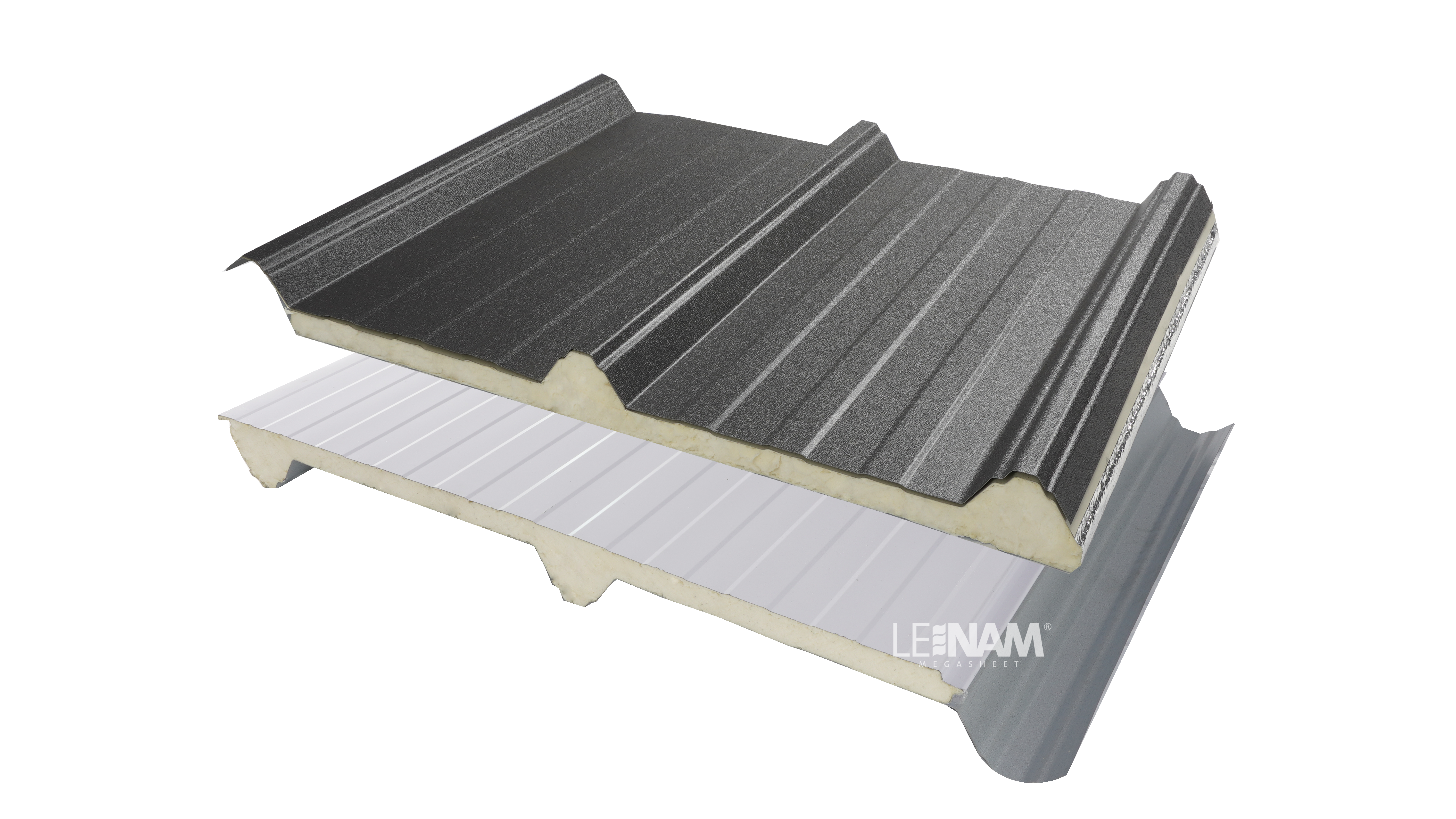

  • Insulation system made up of 3 layers : which consisted a layer of rigid Polyurethane (PU) foam in between two prepainted metal sheet

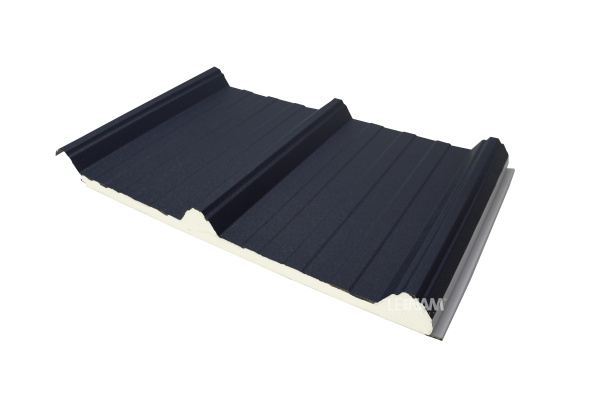

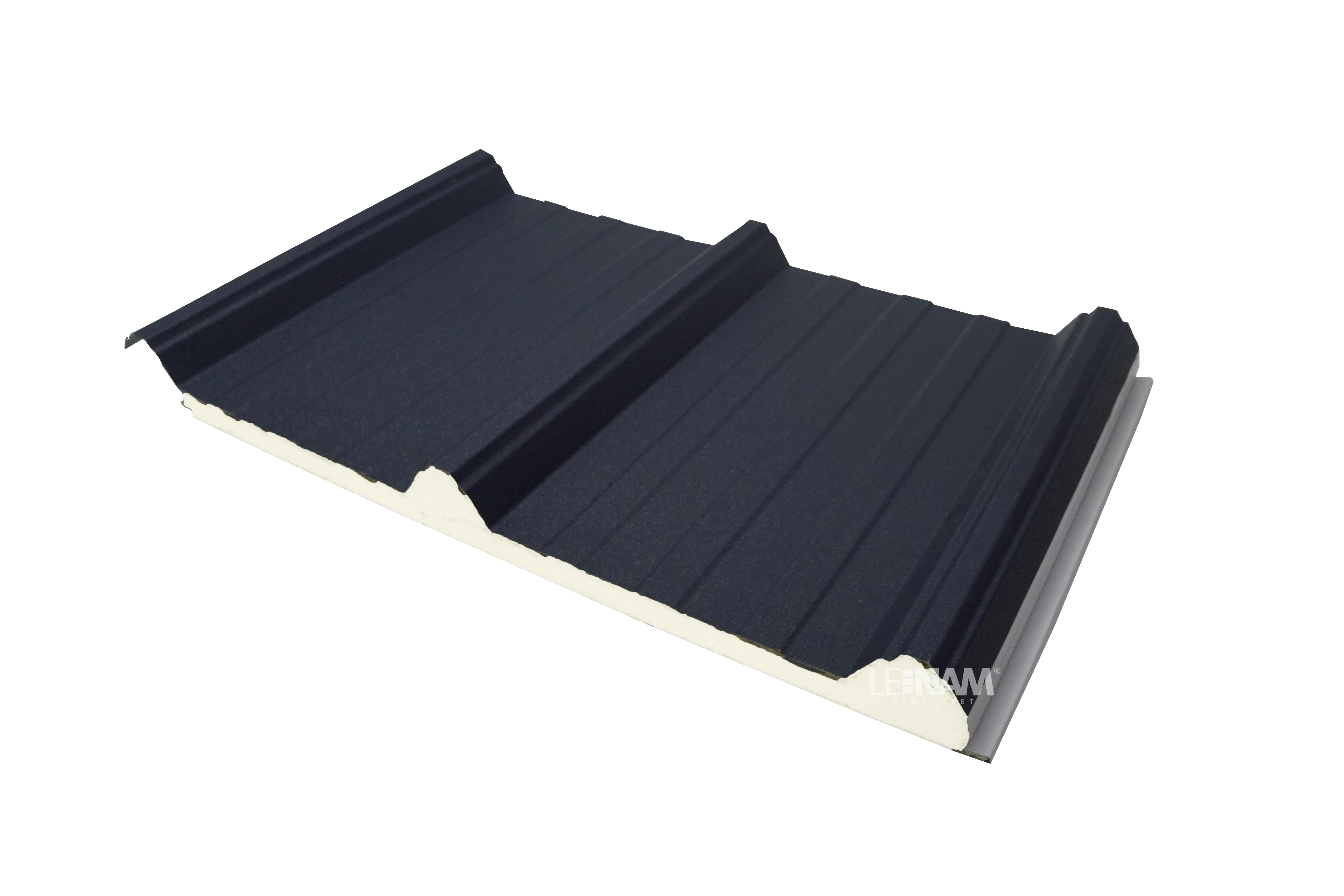

  • Ledex Premium™ Hi-Rib 40 PU Metal Roofing is made of high tensile steel with 40mm deep trapezoidal profile. It is able to fix down to roof of 1° pitch without any leakage. This is a premium roof profile allowing larger span and lesser fasteners that will allow less installation time.
  • It is water-resistant and is processed using high density Close Cell Polyurethane.
  • Hence, it is more practical and affordable for a prefect budget consideration. The lapping and screws are concealed using clip cover same as roof color to create seamless finishes and prevent any screw rusting.
  • It is warrantied for leakage free and low maintenance.
  • It is suitable to be used in low pitch roof building, hypermarket and big factory..
  • It is very high heat-resistant and durable. Due to its total strength quality, it is harder to be damaged during transportation. It also provides a very good sound absorption that is suitable for office, hypermarket and residential use.
Benefits
  • High tensile steel material
  • Able to fixed down to 1 degree pitch roof
  • Excellent strength
  • Practical
  • Highly affordable
Application
  • Low Pitch Residential
  • Commercial Shop Lot
  • Gazebo
  • Hypermarket
  • Industrial Roof
  • Institutions Buildings
  • Commercial
  • Agriculture Mega Buildings
Project References
Structure

Specification
  • Effective Width: 740mm
  • Depth of Rib: 40mm
  • Steel Grade: Zincalume G300 Steel, Zincalume G550 Steel
  • Outer Layer Finishing: Zacs, Zacs Cool, Zacs Natural, Prima Maju, Vermoe, Zincalume, Colorbond
  • Inner Layer Finishing(TCT): Metal 0.30mm
  • PU Metal Thickness: 25mm, 50mm, 60mm
  • Minimun Roof Pitch: 1° Sheet without end lap
  • Tolerance: Length ± 3mm, Width ± 5mm, Metal Thickness ± 0.03mm, PU Thickness ± 2mm
Brochure

Download

×
